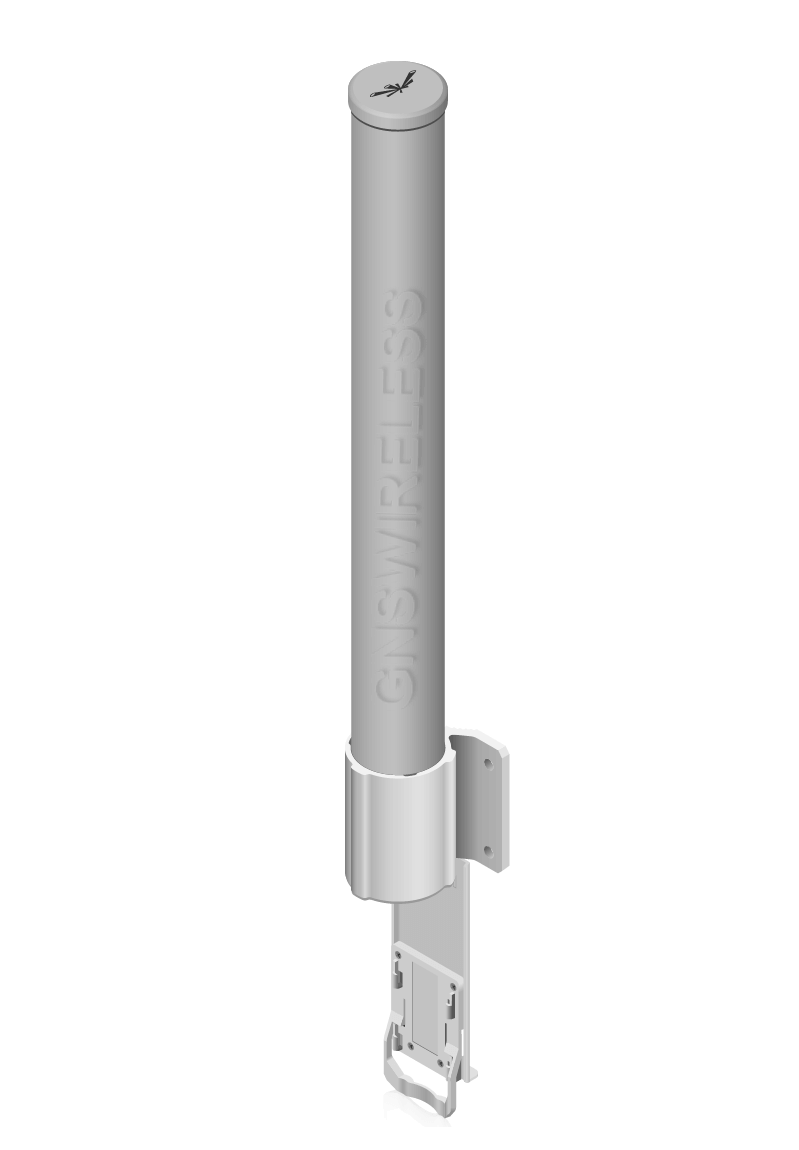

Description 5 GHz Omni Directional Antenna, 13 dBi Great for extending the range of your 5 GHz outdoor Wireless Network. Add the 5 Ghz Access Point for easy integration. This Omni Antenna is a Carrier Class 2×2 Dual Polarity MIMO omni directional antenna. Rocket M and AirMax Omni-Directional Antennas have been designed to seamlessly work together using the integrated mount. Other Access Points connect seamlessly to this 5 GHz omni directional antenna using the correct coaxial cables provided by GNS Wireless. Installing Rocket M on AirMax Omni Antenna requires no special tools–you simply snap it into place with the mount and use the RF jumper cables provided with the Antenna. 5GHz Omni Antenna Featuers: Frequency Range: 5.45 – 5.85 GHz* Gain: 13 dBi Elevation Beamwidth: 7 deg Max VSWR: 1.5:1 Downtilt: 2 deg Dimensions (l x w x h): 158 x 98 x 834 mm Weight: 0.82 kg Wind Survivability: 125 mph Wind Loading: 10 lb @ 100 mph Polarization: Dual Linear Cross-pol Isolation: 25 dB min ETSI Specification: EN 302 326 DN2 Mounting: Universal pole mount, Rocket M bracket, and weatherproof RF jumpers included Utilize AirMax Technology.
